Before it necessarily read quick
start
 By default

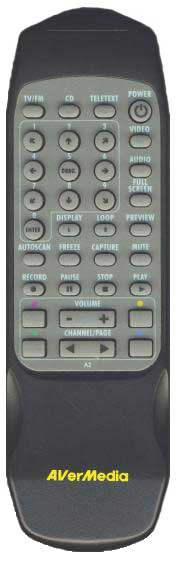

the program is configured on work with the Remote Control from TV
tuner AverTV Model 203. If to use any other Remote Control
with the same name of buttons there is no necessity to
correct scripts, it is enough to correct names of buttons of
the Remote Control in plugin setup. The standard names of Remote
Control buttons used in a scripts:
|
"POWER"
| |
"VIDEO"
"AUDIO"
"TV"
"RADIO"
"TELETEXT"
"CD"
"DVD"
"WEB_LAUNCH"
| |
"0", "1", "2", "3", "4",
"5", "6", "7", "8", "9"
| |
"RED"
"YELLOW"
"GREEN"
"BLUE"
| |
"MOUSEMODE" (use it for HAND or PREVIEW)
"LEFTMOUSE"
"RIGHTMOUSE"
"LEFTMOUSEDOUBLECLICK"
"RIGHTMOUSEDOUBLECLICK"
| |
"DIRPADRIGHT"
"DIRPADUP"
"DIRPADLEFT"
"DIRPADDOWN"
"DIRPADRIGHTUP"
"DIRPADRIGHTDOWN"
"DIRPADLEFTUP"
"DIRPADLEFTDOWN"
| |
"NEXT" (remap from CH_UP)
"PREV" (remap from CH_DOWN)
| |
"VOL_UP"
"VOL_DOWN"
"MUTE"
| |
"DISPLAY" (use it for MENU)
"SETUP" (use it for LOOP, REPEAT or RECALL)
"ENTER" (use it for OK)
| |
"UP"
"DOWN"
"LEFT"
"RIGHT"
| |
"FWD" (use it for FF)
"REW" (use it for RW)
"PLAY"
"PAUSE"
"STOP"
"RECORD"
| |
"SLEEP" (use it for STOPWATCH, FREEZE or MINIMIZE)
| |
"SCAN" (use it for A or AUTOSCAN)
"B"
"CANCEL" (use it for C)
"CAPTURE" (use it for D or HOLD)
"E"
"F"
| |
"ZOOM" (remap from RESIZE or FULLSCREEN)
|
Multimedia applications:
Buttons AUDIO, VIDEO, TV, CD are started the favorite applications
specified in script file favorites.scs. If the program is
already started, it becomes activated and enabled the group corresponding
to it. How to assign the favorite programs to AUDIO, VIDEO,
TV, CD buttons , see here.
Global buttons:
Toggle HOLD mode - Capture button (disabled by default).
Close active window. Press 2 times POWER button during 2 sec.
Minimize window - SLEEP button (remap Freeze)
Switch to the next application - SCAN button
Shutdown / logoff. Press and hold POWER button 4 sec.
Remote Mouse (enable on startup)
Toggle by MOUSEMODE button (remap PREVIEW).
Buttons 1,2,3,4,6,7,8,9 mouse pointer moves on 8 directions.
ENTER (remap RED) = left click, CANCEL (remap YELLOW) = right
click.
Drag & Drop:
5 = left button down
0 = left button up
Remote Keyboard (arrows)
Toggle by MOUSEMODE button (remap PREVIEW).
Num Lock automaticaly ON
2,4,6,8 = arrows
7,1,9,3 =Home, End, PgUp, PgDn
ENTER (remap RED) = Enter
CANCEL (remap YELLOW) = Esc
5 =Tab
Remote Keyboard (numpad)
Toggle by MOUSEMODE button (remap PREVIEW).
Num Lock automaticaly OFF
0..9 = digits
ENTER (remap RED) = Enter
CANCEL (remap YELLOW) = Esc
Sound Mixer
Master Volume control. Work buttons Vol_Up, Vol_Down and Mute.
Need to configure with your sound
card first.
CD Audio
Enabled by CD button. It is used built-in plugin, therefore any
external programs it is not started.
Works buttons Play, Pause, Stop, Prev/Next (remap Channel +/-),
Record = Eject.
Power = disable CD Audio control
AverTV (setup)
JTV (setup)
Enabled by TV button. If it is necessary, started JTV.
Works buttons Prev/Next (remap Channel +/-), Display, Zoom (remap
FullScreen), Teletext
Digits 0..9 - channel number, Loop = -/--.
Power = close JTV
DScaler (setup)
Enabled by TV button. If it is necessary, started DScaler.
Works buttons Prev/Next (remap Channel +/-), Display, Zoom (remap
FullScreen), Teletext, Red, Yellow, Blue, Green
Power = close DScaler
MediaPlayer 6.4 (setup)
Enabled by VIDEO button. If it is necessary, started MediaPlayer.
Works buttons Play, Pause, Stop, Zoom (remap Full Screen),
Display = Open File.
Power = close MediaPlayer
ZoomPlayer / BSPlayer / PowerDVD / ATI Multimedia Center
(setup)
Enabled by VIDEO button. If it is necessary, started ZoomPlayer
/ PowerDVD.
Works buttons Play, Pause, Stop, Zoom (remap FulScreen), Loop,
Prev/Next (remap Channel +/-).
Rew/Fwd (remap Green/Blue) = seeking
Display = PlayList.
Power = close ZoomPlayer / PowerDVD
Sasami2k (setup)
Enabled by VIDEO button. If it is necessary, started Sasami2k.
Works buttons Play, Pause, Stop, Zoom (remap FulScreen), Loop.
Prev/Next (remap Channel +/-) = Brightness
Rew/Fwd (remap Green/Blue) = Seeking
Power = close Sasami2k
WinDVR (setup)
Enabled by TV button. If it is necessary, started WinDVR.
Works following buttons: Prev/Next (remap Channel +/-), Zoom (remap
FulScreen), Record, Pause, Stop.
Teletext = Last Channel
TV = Select input source
Rew/Fwd (remap Green/Blue) = Brightness
Display = Capture still image
Loop = Channel surf
Use also keyboard arrows/numpad emulation. Select by MouseMode
button (remap Preview).
Enter (remap Red) button = Enter key (open the Play dialog box)
Select program by 2(Up)/8(Down) buttons (in keyboard arrows mode)
and
press Play button for play.
Power = close WinDVR
WinAMP / WinAMP3 / Apollo / CoolPlayer (setup)
Enabled by AUDIO button. If it is necessary, started WinAMP /
CoolPlayer.
Works buttons Play, Pause, Stop, Loop, Volume +/-, Prev/Next (remap
Channel +/-),
Rew/Fwd (remap Green/Blue) = seeking,
Display = PlayList
Power = close WinAMP / CoolPlayer
FlyDS (setup)
Enabled by TV button. If it is necessary, started FlyDS.
Works buttons Prev/Next (remap Channel +/-), Zoom (remap FullScreen),
Mute, Record, Pause, Stop, Play, 0..9
TV = TV/FM
Display = snapshot
Loop = select settings, Rew/Fwd (remap Green/Blue) = adjust settings
Power = close FlyDS
bTV (setup)
Enabled by TV button. If it is necessary, started bTV.
Works buttons Prev/Next (remap Channel +/-), Zoom (remap FullScreen),
Teletext, Mute, Pause, 0..9
Display = snapshot
Recoed = video capture
Stop = Sleep Timer
Loop = select settings, Rew/Fwd (remap Green/Blue) = adjust settings
Power = close bTV
bRadio / Radiator
bRadio is started by double pressing of TV button.
Works buttons Prev/Next (remap Channel +/-), Mute
Display = mono / stereo
Loop = Reset
Stop = Sleep Timer
Zoom (remap FullScreen) = enable/disable digits 0..9 (Remote Keyboard/Mouse
will be disabled)
0..9 = select favorite station
Power = close bRadio
It is possible to adjust any other actions with any programs
on different events (not only management with Remote Control).
|
